TSS-107-47 Primary
SuperSprings International Inc.

Trailer SumoSprings TSS-107-47

SKU:
TSS-107-47
|
UPC:
850022476112
only $294.99
(No reviews yet) Write a Review
Weight:
13.00 LBS
Width:
5.00 (in)
Height:
8.00 (in)
Depth:
13.00 (in)
Current Stock:
Talk to an expert,
call 888.898.3281 Got questions?
Call 888.898.3281

Successfully added to your cart!

Checkout Now or View Cart

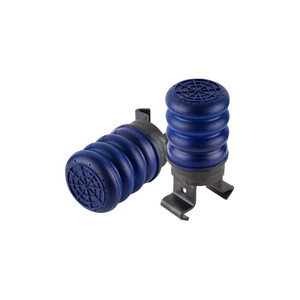

TSS-107-47 Trailer SumoSprings

Trailer SumoSprings are a maintenance-free suspension enhancement built to create a better journey by reducing G-force in your towable by 68%. Handmade from micro-cellular polyurethane, they are designed to remove sway, hop, & body roll while increasing overall driver control and comfort while towing.

The TSS-107-47 is designed for trailer frames with a GAWR of 5,000-8,000 lbs with the spring sitting on top of the axle tube. The Black SumoSprings shouldn’t be compressed past 65% of their original height in order to keep full memory rebound.

Install Instructions

Download Installation Instructions

NOTE:
This product is designed to work on most trailers with the springs mounted above the axle. The factory spring plate must not be wider than 4-1/4″. Because of the varying build designs from different trailer manufacturers, there are occasionally some models that this product will not fit. For installation of Trailer SumoSprings the gap between the top of spring plate and bottom of the frame must be between 5.3″ and 6.55″. TSS-CTP also needed for trailers with springs not directly under frame rail. One kit per axle.

This kit fits:

Trailer SumoSprings for Trailer Axle, GAWR: 5000-8500 (Spring-Over Axle Configuration)

Shipping Weight Box Dimensions Approx Install Time

13 Lbs.

13x8x5

1 Hr.

TSS-107-47 Trailer SumoSprings

Trailer SumoSprings are a maintenance-free suspension enhancement built to create a better journey by reducing G-force in your towable by 68%. Handmade from micro-cellular polyurethane, they are designed to remove sway, hop, & body roll while increasing overall driver control and comfort while towing.

The TSS-107-47 is designed for trailer frames with a GAWR of 5,000-8,000 lbs with the spring sitting on top of the axle tube. The Black SumoSprings shouldn’t be compressed past 65% of their original height in order to keep full memory rebound.

Install Instructions

Download Installation Instructions

NOTE:
This product is designed to work on most trailers with the springs mounted above the axle. The factory spring plate must not be wider than 4-1/4″. Because of the varying build designs from different trailer manufacturers, there are occasionally some models that this product will not fit. For installation of Trailer SumoSprings the gap between the top of spring plate and bottom of the frame must be between 5.3″ and 6.55″. TSS-CTP also needed for trailers with springs not directly under frame rail. One kit per axle.

This kit fits:

Trailer SumoSprings for Trailer Axle, GAWR: 5000-8500 (Spring-Over Axle Configuration)

Shipping Weight Box Dimensions Approx Install Time

13 Lbs.

13x8x5

1 Hr.
